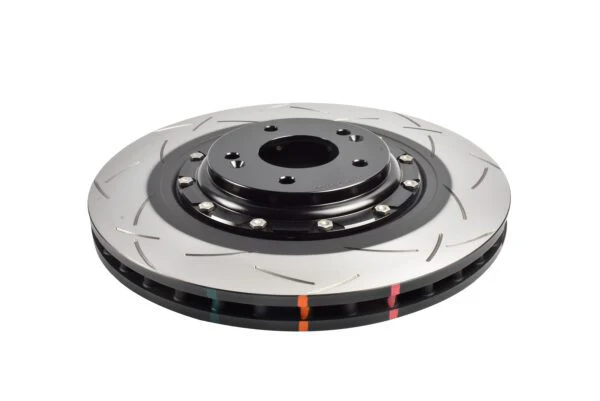

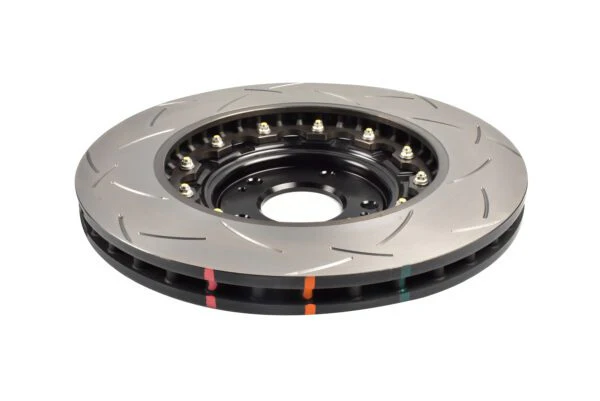

Front 5000 Series T3 Brake Rotor - Elantra N / Kona N
Special Order - Price per side (2 required)
Features
- Two Piece Design Hat and rings sold as complete assemblies and as individual components, for more economical replacement options.
- Surface Design Symmetrical slots facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel. *
- DBA Aluma-Lite Aluma-lite center hat / bell made from extra lightweight 6061 T6 aircraft aluminum, reducing the unsprung weight for better vehicle handling and minimizing heat transfer to the wheel hubs.
- Anti Rust Painted non-friction areas to prevent rust and enhance appearance.
- Bi-Directional Use Symmetrical slotting and/or drilling for universal left/right use.
- Thermal Stability Profiling (TSP) Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability. Centre split core castings for increased heat transfer and thermal efficiency.
- Thermal Efficiency Centre-split core castings for increased heat dissipation and thermal efficiency.*
- CBN Cubic Boron Nitride machine turned finish, minimizing disc thickness variation and the potential for pad “knock” and resulting premature wear.
- Thermographic Heat Paint (TGHP) Paint markings change color at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
- High Carbon Alloyed Iron Formulation allows for optimal interaction with DBA’s thermal stability profiling. Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
- Kangaroo Paw Unique Kangaroo Paw vein design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.*
- NAS Bolts & Nuts National Aerospace Standards (NAS) bolts and crimp nuts for maximum strength at minimal weight.
-
Technical Specs
Product SubVariant T3 Axle Front Vane Design Kangaroo Paw Outer diameter[mm] 360 Height [mm] 52.5 Brake Disc Thickness [mm] 30 Minimum Thickness [mm] 28 Centering Diameter [mm] 69 Number of Holes 5 Weight [kg] 10.68 Pitch Circle Ø 153.3 Uom Each Surface Design Slotted
Package Specs
No. of items in box 1 Packaged Weight (kg) 10.68
General Specs
SKU DBA53148BLKS Barcode 9316391480583 Short Description 5000 Series T3 Brake Rotor Brand DBA Product Segment Rotors & Drums Product Category Brake Rotor Product Variant 5000 Series Warranty 12 months/ 20,000km/ 12,000 miles
Technical Specs
| Product SubVariant | T3 |
|---|---|
| Axle | Front |
| Vane Design | Kangaroo Paw |
| Outer diameter[mm] | 360 |
| Height [mm] | 52.5 |
| Brake Disc Thickness [mm] | 30 |
| Minimum Thickness [mm] | 28 |
| Centering Diameter [mm] | 69 |
| Number of Holes | 5 |
| Weight [kg] | 10.68 |
| Pitch Circle Ø | 153.3 |
| Uom | Each |
| Surface Design | Slotted |
Package Specs
| No. of items in box | 1 |
|---|---|
| Packaged Weight (kg) | 10.68 |
General Specs
| Short Description | 5000 Series T3 Brake Rotor |
|---|---|
| Brand | DBA |
| Product Segment | Rotors & Drums |
| Product Category | Brake Rotor |
| Product Variant | 5000 Series |
| Warranty | 12 months/ 20,000km/ 12,000 miles |
$403.15
Front 5000 Series T3 Brake Rotor - Elantra N / Kona N—
$403.15
Description
Special Order - Price per side (2 required)
Features
- Two Piece Design Hat and rings sold as complete assemblies and as individual components, for more economical replacement options.
- Surface Design Symmetrical slots facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel. *
- DBA Aluma-Lite Aluma-lite center hat / bell made from extra lightweight 6061 T6 aircraft aluminum, reducing the unsprung weight for better vehicle handling and minimizing heat transfer to the wheel hubs.
- Anti Rust Painted non-friction areas to prevent rust and enhance appearance.
- Bi-Directional Use Symmetrical slotting and/or drilling for universal left/right use.
- Thermal Stability Profiling (TSP) Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability. Centre split core castings for increased heat transfer and thermal efficiency.
- Thermal Efficiency Centre-split core castings for increased heat dissipation and thermal efficiency.*
- CBN Cubic Boron Nitride machine turned finish, minimizing disc thickness variation and the potential for pad “knock” and resulting premature wear.
- Thermographic Heat Paint (TGHP) Paint markings change color at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue.
- High Carbon Alloyed Iron Formulation allows for optimal interaction with DBA’s thermal stability profiling. Increases the capacity of the rotor to handle constant and extreme heat over prolonged periods.
- Kangaroo Paw Unique Kangaroo Paw vein design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.*
- NAS Bolts & Nuts National Aerospace Standards (NAS) bolts and crimp nuts for maximum strength at minimal weight.
-
Technical Specs
Product SubVariant T3 Axle Front Vane Design Kangaroo Paw Outer diameter[mm] 360 Height [mm] 52.5 Brake Disc Thickness [mm] 30 Minimum Thickness [mm] 28 Centering Diameter [mm] 69 Number of Holes 5 Weight [kg] 10.68 Pitch Circle Ø 153.3 Uom Each Surface Design Slotted
Package Specs
No. of items in box 1 Packaged Weight (kg) 10.68
General Specs
SKU DBA53148BLKS Barcode 9316391480583 Short Description 5000 Series T3 Brake Rotor Brand DBA Product Segment Rotors & Drums Product Category Brake Rotor Product Variant 5000 Series Warranty 12 months/ 20,000km/ 12,000 miles
Technical Specs
| Product SubVariant | T3 |
|---|---|
| Axle | Front |
| Vane Design | Kangaroo Paw |
| Outer diameter[mm] | 360 |
| Height [mm] | 52.5 |
| Brake Disc Thickness [mm] | 30 |
| Minimum Thickness [mm] | 28 |
| Centering Diameter [mm] | 69 |
| Number of Holes | 5 |
| Weight [kg] | 10.68 |
| Pitch Circle Ø | 153.3 |
| Uom | Each |
| Surface Design | Slotted |
Package Specs
| No. of items in box | 1 |
|---|---|
| Packaged Weight (kg) | 10.68 |
General Specs
| Short Description | 5000 Series T3 Brake Rotor |
|---|---|
| Brand | DBA |
| Product Segment | Rotors & Drums |
| Product Category | Brake Rotor |
| Product Variant | 5000 Series |
| Warranty | 12 months/ 20,000km/ 12,000 miles |
