VC-50 Water Methanol Controller (Boost)
-
-
Boost Cooler Stage 2 VC-50 Control Unit Upgrade
Variable Injection via Boost Pressure. For all Turbo and Supercharged Engines up to 3.5 Bar Boost Pressure.
The Boost Cooler VC-50 control unit from SNOW Performance regulates the water or water-alcohol injection quantity progressively to the boost pressure. The desired start and full injection time (boost pressure) is simply entered on the OLED screen and the controller creates an injection curve for the optimal injection quantity.
In addition to the primary injection nozzle, an additional nozzle can optionally be activated separately. The so-called "power nozzle" is also activated at high engine load and enables an increased total injection quantity at full load. The optional Dual Stage Upgrade is required for this.
The progressive injection of water or water / methanol based on the boost pressure is quite precise and has a positive effect on cooling and engine performance over a wide load range. In particular, the possibility of an additional nozzle in the full load range has a positive effect on the overall performance of the system.
Recommended for all turbo and radial compressor engines as well as turbo diesel engines up to about 3.5 bar boost pressure.
Product Features:- Electronically controlled injection via boost pressure / MAP
- Can be used up to 3.5bar boost pressure

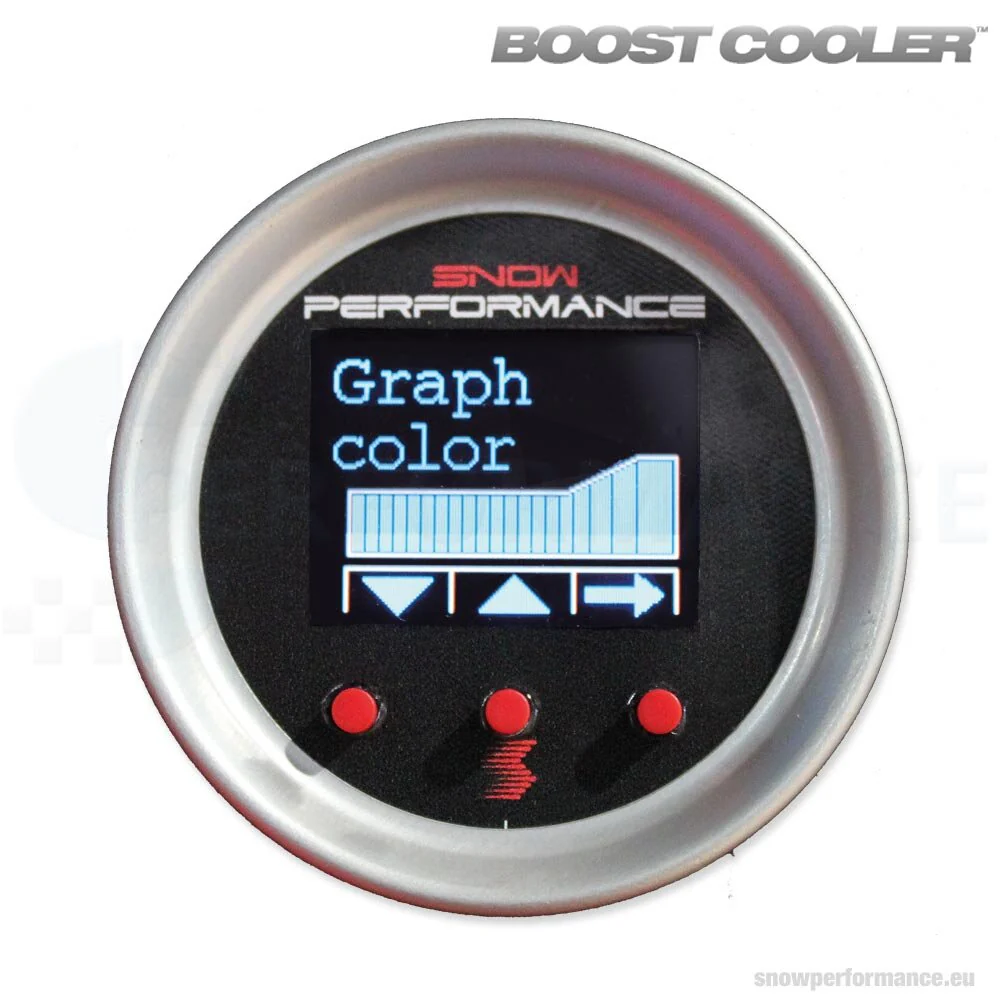

- 52mm controller with color-adjustable OLED display (7 colors)
- Display of Boost Pressure (bar), Injection Quantity, Fluid Level, Power Nozzle Activation and Error Codes
- Prime / Pump Test Button
- For all Turbo Diesel and Gasoline Engines with Turbo or Radial Supercharger
- Suitable for all SNOW Performance Boost Cooler systems from 2005 onwards

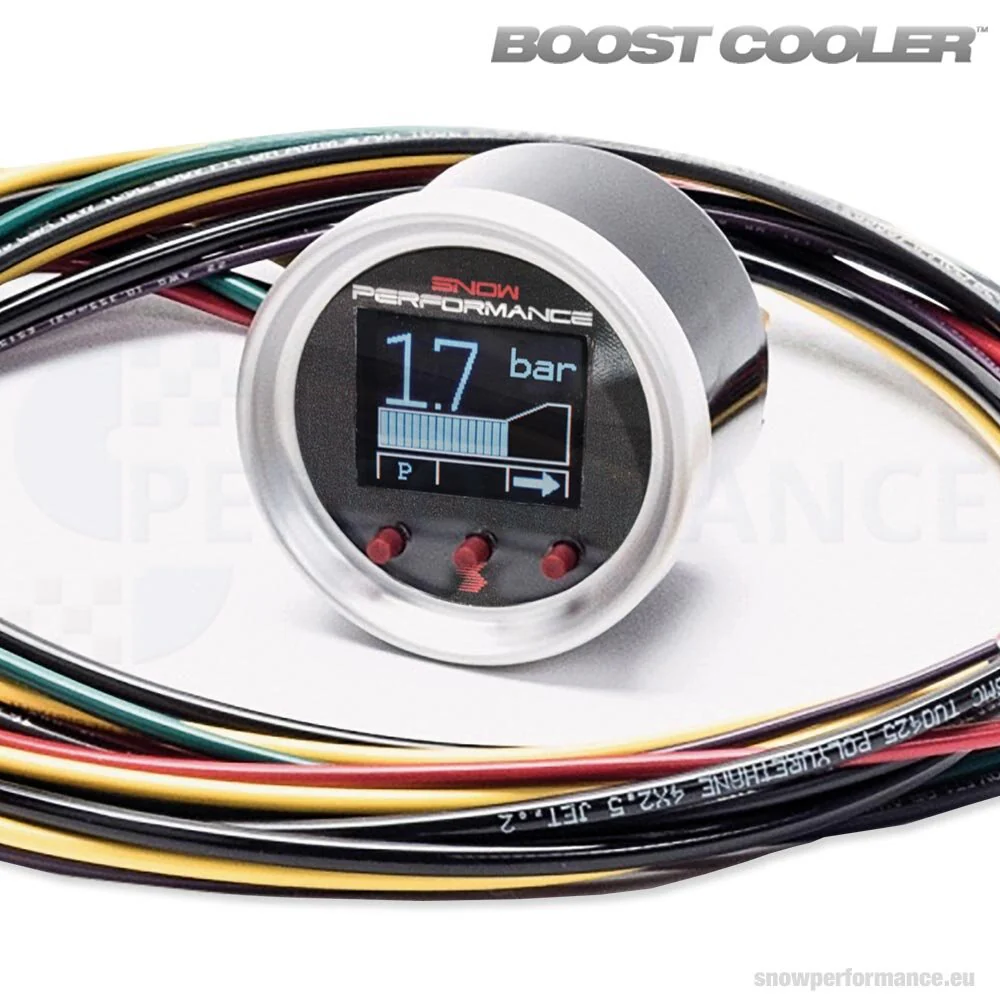

Scope of Delivery:- Boost Cooler VC-50 OLED control unit, 52mm diameter
- Wiring harness
-
Description
-
-
Boost Cooler Stage 2 VC-50 Control Unit Upgrade
Variable Injection via Boost Pressure. For all Turbo and Supercharged Engines up to 3.5 Bar Boost Pressure.
The Boost Cooler VC-50 control unit from SNOW Performance regulates the water or water-alcohol injection quantity progressively to the boost pressure. The desired start and full injection time (boost pressure) is simply entered on the OLED screen and the controller creates an injection curve for the optimal injection quantity.
In addition to the primary injection nozzle, an additional nozzle can optionally be activated separately. The so-called "power nozzle" is also activated at high engine load and enables an increased total injection quantity at full load. The optional Dual Stage Upgrade is required for this.
The progressive injection of water or water / methanol based on the boost pressure is quite precise and has a positive effect on cooling and engine performance over a wide load range. In particular, the possibility of an additional nozzle in the full load range has a positive effect on the overall performance of the system.
Recommended for all turbo and radial compressor engines as well as turbo diesel engines up to about 3.5 bar boost pressure.
Product Features:- Electronically controlled injection via boost pressure / MAP
- Can be used up to 3.5bar boost pressure
- 52mm controller with color-adjustable OLED display (7 colors)
- Display of Boost Pressure (bar), Injection Quantity, Fluid Level, Power Nozzle Activation and Error Codes
- Prime / Pump Test Button
- For all Turbo Diesel and Gasoline Engines with Turbo or Radial Supercharger
- Suitable for all SNOW Performance Boost Cooler systems from 2005 onwards
Scope of Delivery:- Boost Cooler VC-50 OLED control unit, 52mm diameter
- Wiring harness
-
